1 函数入口
如果现阶段我们还认为函数入口是从main开始的,只能说,我们的在学习高中物理而并非大学物理。虽然没有绝对的否定,但是可以用不准确来形容。对于一个SoC的programmer来说,程序从main开始我觉得这是不允许的。我们必须知道程序真正的入口在哪里。这个函数,如果是我们按照正常的理解,那么后输出的是main will return

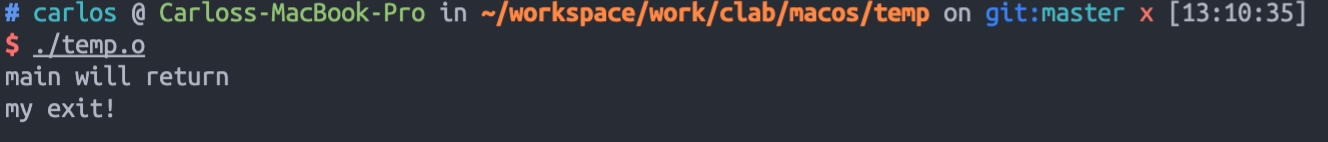

,先输出的my exit!
,但是事实并非如此。
#include <stdio.h>
#include <stdlib.h>
void my_exit(void) {
printf("my exit!\n");
}
int main(void) {
atexit(&my_exit);
printf("main will return\n");
return 0;
}

程序在main返回之后,会记录main函数的返回值,调用atexit注册的函数,然后结束进程。可以看到,c语言并非简单的由main函数进行控制,在此之前肯定做了不少的工作。
那么程序在main之前做了什么?我们要知道,每个平台都不一样,x86和ARM的肯定是不一样的,但肯定有一些是共性的,对于ARM平台:bare-mental和有操作系统的也肯定是不一样。他们需要在这个阶段完成的使命是:
S1:操作系统(或baremental)创建进程之后,把控制权交到程序的入口,这个入口往往是运行库中的某个程序入口。(注意入口不是main,是Entry Point)
S2:运行库的Entry Point势必要对程序的环境进行初始化,包括stack、heap、I/O、线程、全局变量。
S3:call 我们程序中的main函数。
S4:main函数结束完毕之后,还会调到运行库的入口函数,入口函数做一些清理工作,包括全局变量的销毁、stack释放、heap释放、关闭IO、最后结束进程。
1.1 glibc入口函数
glibc的entry point是_start(这个入口是由ld链接器默认的链接脚本所指定的,我们也可以通过相关参数设定自己的入口 ld -e
),我们看下libc里面怎么实现的:
armv7平台的:glibc-2.35/sysdeps/arm/start.S
armv8平台的:glibc-2.35/sysdeps/aarch64/start.S
我们先研究一下armv8平台的,armv7的可以参考
/* This is the canonical entry point, usually the first thing in the text
segment.
Note that the code in the .init section has already been run.
This includes _init and _libc_init
At this entry point, most registers' values are unspecified, except:
x0/w0 Contains a function pointer to be registered with `atexit'.
This is how the dynamic linker arranges to have DT_FINI
functions called for shared libraries that have been loaded
before this code runs.
sp The stack contains the arguments and environment:
0(sp) argc
8(sp) argv[0]
...
(8*argc)(sp) NULL
(8*(argc+1))(sp) envp[0]
...
NULL
*/
.text
ENTRY(_start)
/* Create an initial frame with 0 LR and FP */
cfi_undefined (x30)
mov x29, #0
mov x30, #0
/* Setup rtld_fini in argument register */
mov x5, x0
/* Load argc and a pointer to argv */
ldr PTR_REG (1), [sp, #0]
add x2, sp, #PTR_SIZE
/* Setup stack limit in argument register */
mov x6, sp
#ifdef PIC
# ifdef SHARED
adrp x0, :got:main
ldr PTR_REG (0), [x0, #:got_lo12:main]
# else
adrp x0, __wrap_main
add x0, x0, :lo12:__wrap_main
# endif
#else
/* Set up the other arguments in registers */
MOVL (0, main)
#endif
mov x3, #0 /* Used to be init. */
mov x4, #0 /* Used to be fini. */
/* __libc_start_main (main, argc, argv, init, fini, rtld_fini,
stack_end) */
/* Let the libc call main and exit with its return code. */
bl __libc_start_main
/* should never get here....*/
bl abort
#if defined PIC && !defined SHARED
/* When main is not defined in the executable but in a shared library
then a wrapper is needed in crt1.o of the static-pie enabled libc,
because crt1.o and rcrt1.o share code and the later must avoid the
use of GOT relocations before __libc_start_main is called. */
__wrap_main:
BTI_C
b main
#endif
END(_start)
/* Define a symbol for the first piece of initialized data. */
.data
.globl __data_start
__data_start:
.long 0
.weak data_start
data_start = __data_start
我们先看一下glibc入口的栈使用情况,我给画出来了,栈底有NULL,栈顶是argc,最先吐出来的也是argc,接着就是argv的参数了,最后还有envp环境变量的参数。还要注意的是,寄存器x0被占用,存放我们atexit(func_addr)里面func_addr的值。

void _start()
{
int x0 = atexit_func_address;
/* Create an initial frame with 0 LR and FP */
int x29 = 0; // lR
int x30 = 0; // fp
/* Setup rtld_fini in argument register */
int x5 = x0; // rtld_fini
/* Load argc and a pointer to argv */
int argc = /* pop from stack */ sp[0];
char ** argv = /* pop from stack*/ sp[1];
__libc_start_main (main, argc, argv, init, fini, rtld_fini, stack_end)
}
这个_start函数提供了一些参数初始化,然后会调用运行库里面__libc_start_main函数:
performing any necessary security checks if the effective user ID is not the same as the real user ID.
initialize the threading subsystem.
registering the
*rtld_fini*
to release resources when this dynamic shared object exits (or is unloaded).registering the
*fini*
handler to run at program exit.calling the initializer function
(**init*)()
.calling
main()
with appropriate arguments.calling
exit()
with the return value frommain()
.
__libc_start_main函数从此和平台没有任何关系了, 仅仅是调用的逻辑不同。__libc_start_main函数在,被定义成LIBC_START_MAIN在glibc-2.35/csu
路径。
这里面有很多宏定义隔开的在不同场景下的,我们先看最基本的:
__pthread_initialize_minimal()
__cxa_atexit(rtld_fini, NULL, NULL)
__libc_init_first(argc, argv, __environ)
__cxa_atexit(fini, NULL, NULL)
(*init)(argc, argv, __environ)
传入的参数fini和rtld_fini用于main结束之后调用。还有个要注意的,atexit是一个链表结构,在exit时候会遍历每个链表:
void exit(int status)
{
while(__exit_funcs != NULL) {
__exit_funcs = __exit_funcs->next;
}
__exit(status);
}
1.2 I/O初始化
这部分简单的来说,进程需要在用户空间建立stdin,stdout,stderr对应的FILE FD,让程序可以直接使用printf,scanf等。
2 运行库
glibc发布版本主要有三部分组成:
头文件:/usr/include
二进制文件部分
动态部分:/lib/libc.so.6
静态部分:/usr/lib/libc.a
辅助运行库
/usr/lib/crt1.o
/usr/lib/crti.o
/usr/lib/ctrn.o
2.1 glibc启动文件
这个文件包含程序的入口函数_start,所以由它负责调用我们1节说的_libc_start_main,包含了基本的启动、退出代码,ctr1.o必须是链接器第一个输入的位置。elf文件这块对于ctr1.o也有要求,目标文件中引入了.init和.finit,运行库会保证所有位于这两个段中的代码会先于/后于main函数执行,所以他们用来实现全局构构造和全局析构。在ctr1.o中包含了一些辅助代码,(比如计算GOT之类的),因此引入了crti.o和ctrn.o两个文件。ctri.o和ctrn.o这两个目标文件中包含的代码实际上是_init()函数和_finit()函数开始和结尾的部分。链接器输入文件顺序是:
ld crt1.o crti.o [user_objects] [system_libraries] crtn.o
2.2 全局构造和解析
在main前调用函数,glibc的全局构造函数放置在.ctors段内部,因此如果我们手动在.ctors段里面加一些函数指针,就可以让这些函数在全局狗在函数时候(main)前调用:
#include <stdio.h>
#include <stdlib.h>
typedef void (*ctor_t)(void);
void __attribute__((constructor)) my_init(void)
{
printf("my init!\n");
}
void __attribute__((destructor)) my_exit(void) {
printf("my exit!\n");
}
void atexit_func(void) {
printf("atexit !\n");
}
int main(void) {
atexit(&atexit_func);
printf("main will return\n");
return 0;
}
注意,由于全局对象的构建和析构都是由运行库来完成的,于是在程序或共享库中有全局对象的时候,不能使用-nonstartfiles
和-nostdlib选项
否则,编译不通过。
